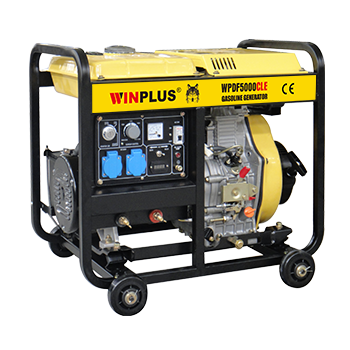

Generator

WPDF5000CLE

Technical specifications

• Type : Brushless, self-excitating, 2-poles, single-phase
• Frequency(Hz): 50 / 60
• Max.AC Output(KW): 4.5 / 5.0
• Rated AC Output (KW): 4.2 / 4.6
• Rated AC voltage (V): 110, 220, 230, 110 / 220, 120 / 240
• DC Output(V/A): 12 / 8.3
• Engine type: forced air-cooled, 4-stroke, diesel engine
• Displacement(cc): 406
• Max. Output: 10.0HP / 3600rpm
• Starting Mode: Electric start
• G.W/N.W.(KG): 92 / 89
• Carton dimension(mm): 735 x 495 x 605
• Qty/20"/40"/40HQ: 102 / 213 / 284pcs
